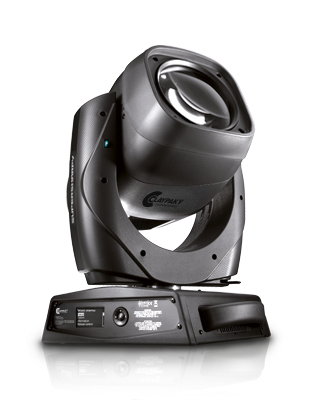

Moving Beam - Supersharpy - CLAY PAKY

SUPERSHARPY



Hãng sản xuất: CLAY PAKY - Italy

Tình trạng : Còn hàng

Giá : Liên hệ

 Lượt xem: 178



Xem sản phẩm từ nhà sản xuất







THÔNG SỐ KỸ THUẬT

POWER SUPPLIES

115/230V 50/60 Hz
Automatic Power supply switching



INPUT POWER

700VA at 230V 50Hz



LAMP SOURCE

470W discharge lamp
- Type: MSD Platinum 20R
- Color Temperature: 7,800 K
- Life: 1,500hrs
- Luminoux flux: 23,000 lm
- Cap by faston TM 250 (6.35 mm)



OPTICS

170mm diam. front lens
0-4° Adjustable beam angle
Electronic Focusing



COLOR SYSTEM

CMY color system based on 3 gradually fading color wheels
14 color filters on three wheels
2 CT0 filters (3,200K and 2,500K) + 1 CTB filter



EFFECTS SECTION

2 gobo wheels
- wheel with 7 HQ dichroic, indexable and interchangeable rotating gobos.
- interchangeable and variable rotation wheel with 18+1 fixed metal gobos (including 6 beam reducers).
Selectable gobo-shake function
Interchangeable 8-facet Prism
Frost unit to soften the beam edge
0-100% Mechanical dimmer
Mechanical shutter and adjustable speed strobe effect



CONTROL AND PROGRAMMING

24/28 DMX 512 control channels
DMX protocol signal: USITT DMX 512
Art-Net / RDM
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Gobo Indexing Resolution: 16 bit
Focus Indexing Resolution: 8 bit
Dimmer Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 5 pole XLR input and output
Software upload through DMX input



BODY

Aluminium structure with die-cast plastic cover.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.


MOVING BODY

Angle:
- PAN = 540° - TILT = 244°
Resolution:
- PAN = 2.11° - PAN FINE = 0.008°
- TILT = 0.96° - TILT FINE = 0.004°
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit.



ELECTRONICS

Long life self-charging buffer battery.
Function reset from control unit
"ENERGY SAVING" function: with the stop or total dimmer effect on, or with all the CMY filters full (black), consumption cut by 50%.
ON/OFF lamp control from the lighting desk.
Function reset from the lighting desk.
"AUTOTEST" function from menù
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware Upgrade with no power
Firmware upload from another fixture



SAFETY DEVICES

Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating or failed operation of cooling system.
Forced ventilation with axial fans.

WORKING POSITION

Any Working Position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base



CE MARKING

In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)



WEIGHT

30 Kg (66 lbs)
